ACF1230
Item No. AX03:
1612020009
Item No. D365:
Description

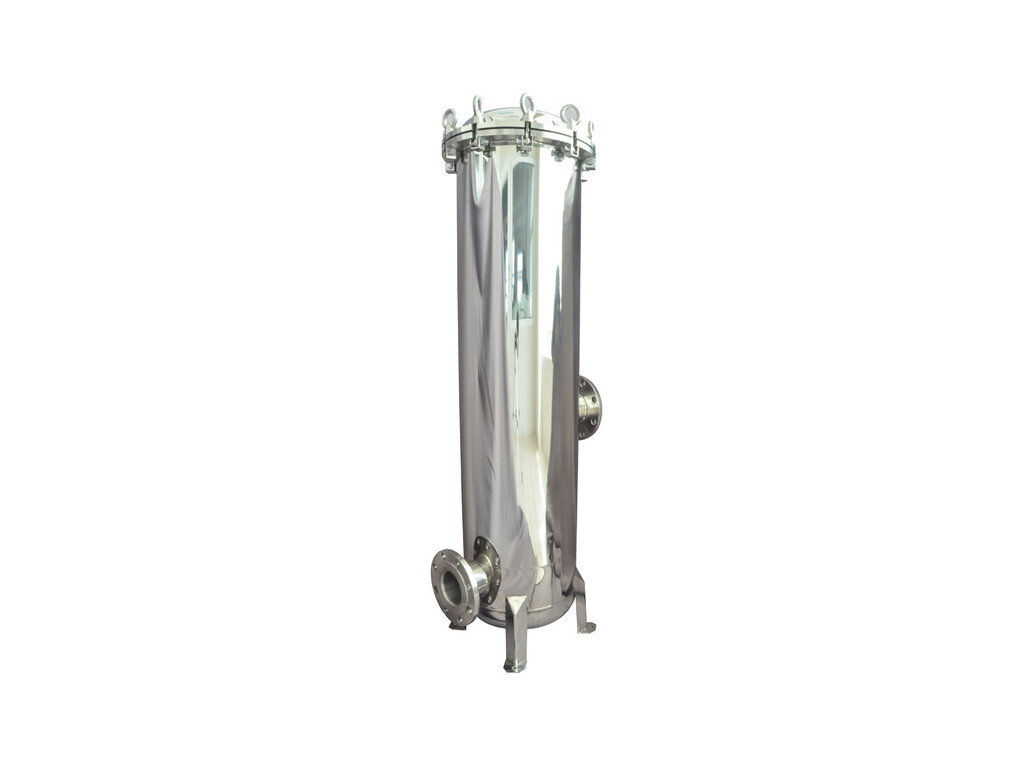

Aqualine Stainless Steel Cartridge Filter System consist of filter body and cartridges. Filter body becomes house for main element cartridges that will purify water. Filter bodies can be manufactured from stainless steel or carbon steel materials. Cartridges that are used at cartridge fiter systems have different micron sensivity. For this reason, for different capacities, it is possible to do sensitive filtration based on micron with suitable number and specification of cartridges. Features of raw water entering in filter are criterion effecting usage time of filters and dirtiness time of cartridges. Cartridges that become dirty must be changed as it will increase pressure loss of filter and also decrease filtration sensitivity.
Features
| Width | 490 mm |
| Height | 1238 mm |
| Depth | 485 mm |
| Weight | 49 kg |
| Connections | 3" |
| Operating Pressure | 7 bar |
| Material | Stainless Steel 304 |
| Flow Rate | 36 m³/h |
| Filter Cartridges | 12 x 30" |
| Filtration | 1 - 25 micron |
| Remarks | Threaded connection between ACF320 to ACF540. Flanged connection between ACF830 to ACF 2740. |
