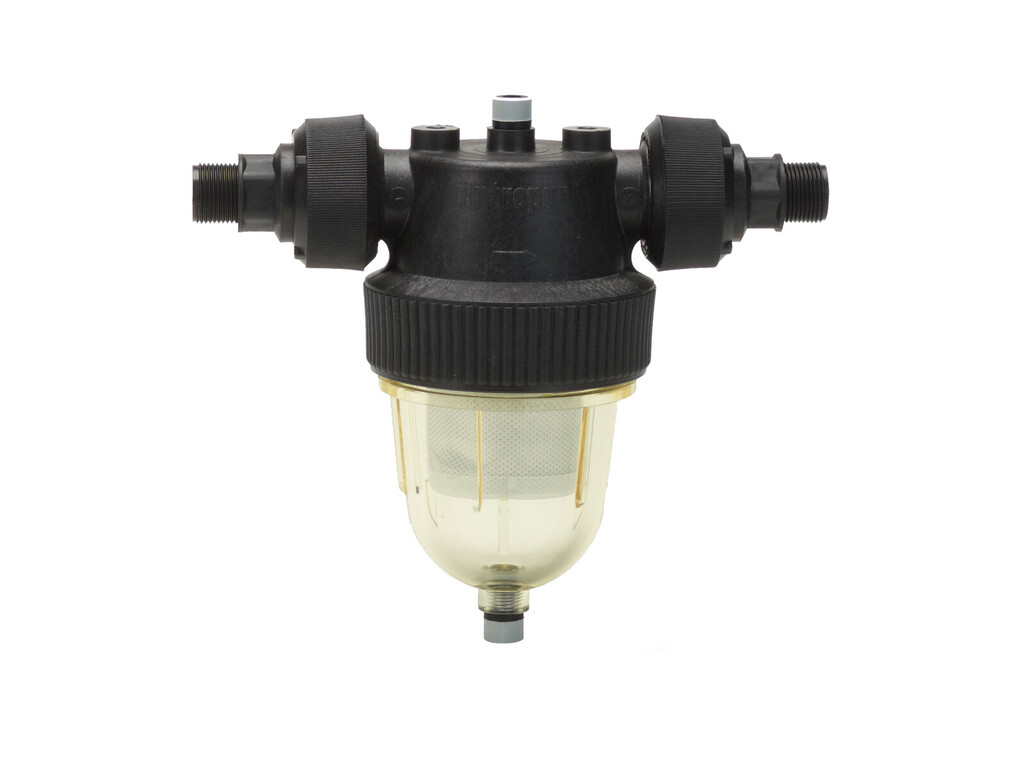

Cintropur filter NW 18
Item No. AX03:
1602015730
Item No. D365:
13351000072
Description
Features
| Connections | 3/4" |
| Good to know | Connections and a 25μ filtering sleeve are included with NW18-25-32 filters |

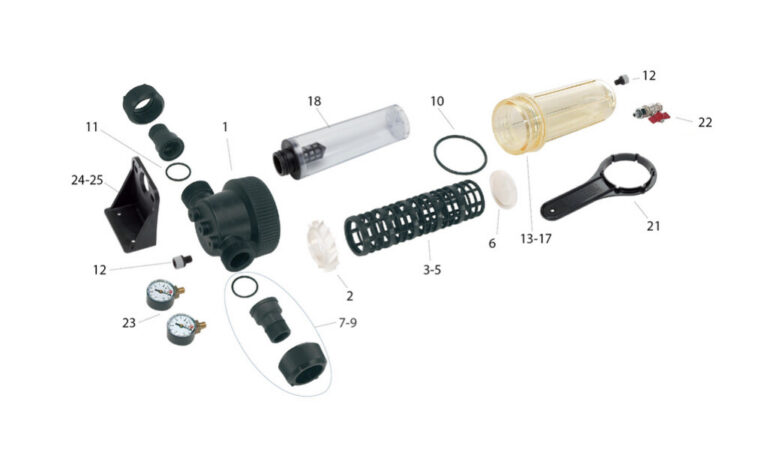

| Exploded view number | Image | Reference | Product | Quantity |
|---|---|---|---|---|
| 01 |
|
1802015787 | Filter head | |
| 02 |
|
1802015771 | Centrifugal screw | |
| 03 |
|
1802015792 | PVC support for sleeves NW 18 | |
| 04 |
|
1802015784 | PVC support for sleeves NW 25 | |
| 05 |
|
1802015785 | PVC support for sleeves NW 32 | |
| 06 |
|
1802015768 | PVC cover for filtersupport | |
| 07 |
|
1802005781 | Complete connections NW 18-25 (3/4″) | |
| 08 |
|
1802005782 | Complete connections NW 25 (1″) | |
| 09 |
|
1802005783 | Complete connections NW 32 (1″1/4) | |
| 10 |
|
1802015776 | O-ring for NW 18-25-32 | |
| 11 |
|
1802013154 | O-ring for connections | |
| 12 |
|
1802005791 | Air screw with O-ring | |
| 13 |
|
1802015765 | Transparant bowl NW 18 | |
| 14 |
|
1802015764 | Transparant bowl NW 25 | |
| 15 |
|
1802015766 | Transparant bowl NW 32 | |
| 16 |
|
1802013156 | Black bowl NW 25 | |
| 17 |
|
1802013157 | Black bowl NW 32 | |
| 18 |
|
1802020001 | Filtercartridge CTN empty | |
| 19 |
|
1802015778 | Riser tube NW 25 | |
| 20 |
|
1802015779 | Riser tube NW 32 | |
| 21 |
|
1802015774 | Spanner for NW 18-25-32 | |
| 22 |
|
1802015762 | Tap 1/4″ | |
| 23 |
|
1802005775 | Manometer 1/8″ 0-10 bar | |
| 24 |
|
1802015770 | Wall bracket PP NW 18-25-32 | |
| 25 |
|
1802003158 | Wall bracket duo stainless steel NW 25 | |
| 26 |
|
1802013152 | Connection piece with O-rings NW 25 |
| Image | Reference | Product | Type |
|---|---|---|---|
|
|
1802015770 | Wall bracket PP NW 18-25-32 | Accessorie |
|
|
1802005775 | Manometer 1/8″ 0-10 bar | Accessorie |
|
|
1802015774 | Spanner for NW 18-25-32 | Accessorie |
|
|
1702015741 | Set of 5 filtering sleeves type NW 18 – 5µ | Accessorie |
|
|
1702015745 | Set of 5 filtering sleeves type NW 18 – 10µ | Accessorie |
|
|
1702015749 | Set of 5 filtering sleeves type NW 18 – 25µ | Accessorie |
|
|
1702015753 | Set of 5 filtering sleeves type NW 18 – 50µ | Accessorie |
|
|
1702015757 | Set of 5 filtering sleeves type NW 18 – 100µ | Accessorie |
No related items available
| Document | Language | Type |
|---|---|---|
| Documentation Cintropur Domestic Filters_DE.pdf | DE | Commercial Information |
| Documentation Cintropur Domestic Filters_ENG.pdf | EN | Commercial Information |
| Documentation Cintropur Domestic Filters_ES.pdf | ES | Commercial Information |
| Documentation Cintropur Domestic Filters_FR.pdf | FR | Commercial Information |
| Documentation Cintropur Domestic Filters_NL.pdf | NL | Commercial Information |
| Documentation Cintropur Domestic Filters_PL.pdf | PLK | Commercial Information |
| Documentation Cintropur Domestic Filters_PT.pdf | PTG | Commercial Information |
| Documentation Cintropur Domestic Filters_RU.pdf | RU | Commercial Information |
| Manual NW-18-25-32.pdf | DE;EN;ES;FR;NL;PLK;RU | Manual |
| Technical Sheets Cintropur Filters_DE.pdf | DE | Technical Sheet |
| Technical Sheets Cintropur Filters_EN.pdf | EN | Technical Sheet |
| Technical Sheets Cintropur Filters_ES.pdf | ES | Technical Sheet |
| Technical Sheets Cintropur Filters_FR.pdf | FR | Technical Sheet |
| Technical Sheets Cintropur Filters_NL.pdf | NL | Technical Sheet |
