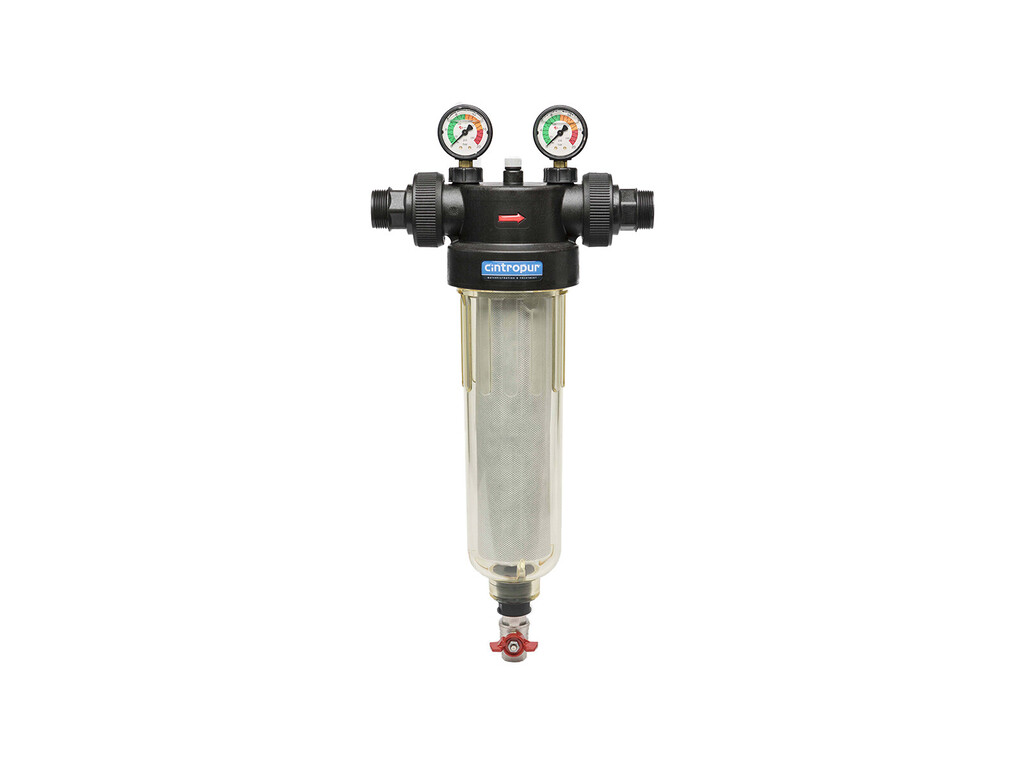

Cintropur filter NW 340
Item No. AX03:
1602010009
Item No. D365:
13351000098
Description
Features
| Connections | 1 1/4" |
No commercial information available.
| Exploded view number | Image | Reference | Product | Quantity |
|---|---|---|---|---|
| 01 |
|
1802005791 | Air screw with O-ring | |
| 02 |
|
1802040002 | Centrifugal screw NW 280-340-400 | |
| 03 |
|
1802040003 | Support PVC filter NW 280 | |
| 04 |
|
1802040001 | Filter head NW 280-340-400 | |
| 05 |
|
1802040004 | Support PVC filter NW 340 | |
| 06 |
|
1802040005 | Support PVC filter NW 400 | |
| 07 |
|
1802040006 | Filter bowl O-ring NW 280-340-400 | |
| 08 |
|
1802040007 | Grease for O-ring (20g) NW 280-340-400 | |
| 09 |
|
1802030013 | Manometer 1/4″ 0-20 bar | |
| 13 |
|
1802040011 | Ball valve 1/2″ + joint NW 280-340-400 | |
| 14 |
|
1802040013 | Connection set 1″ NW 280 | |
| 15 |
|
1802040014 | Connection set 1″1/4 NW 340 | |
| 16 |
|
1802040015 | Connection set 1″1/2 NW 400 | |
| 17 |
|
1802040016 | O-ring connection NW 280-340-400 | |
| 18 |
|
1802030028 | Wall bracket NW 280-340-400 | |
| 19 |
|
1802040017 | Key NW 280-340-400 | |
| 20 |
|
1802040018 | Lid NW 280-340-400 |
| Image | Reference | Product | Type |
|---|---|---|---|
|
|
1802030028 | Wall bracket NW 280-340-400 | Accessorie |
|
|
1802030013 | Manometer 1/4″ 0-20 bar | Accessorie |
|
|
1802040017 | Key NW 280-340-400 | Accessorie |
|
|
1702060001 | Set of 5 filtering sleeves type NW 340 – 1µ | Accessorie |
|
|
1702060002 | Set of 5 filtering sleeves type NW 340 – 5µ | Accessorie |
|
|
1702060003 | Set of 5 filtering sleeves type NW 340 – 10µ | Accessorie |
|
|
1702060004 | Set of 5 filtering sleeves type NW 340 – 25µ | Accessorie |
|
|
1702060005 | Set of 5 filtering sleeves type NW 340 – 50µ | Accessorie |
|
|
1702060006 | Set of 5 filtering sleeves type NW 340 – 100µ | Accessorie |
|
|
1702060007 | Set of 5 filtering sleeves type NW 340 – 150µ | Accessorie |
|
|
1702060008 | Set of 5 filtering sleeves type NW 340 – 300µ | Accessorie |
No related items available
| Document | Language | Type |
|---|---|---|
| Manual NW280-340-400.pdf | DE;EN;ES;FR;NL;PLK;RU | Manual |
| Technical Sheets Cintropur Filters_DE.pdf | DE | Technical Sheet |
| Technical Sheets Cintropur Filters_EN.pdf | EN | Technical Sheet |
| Technical Sheets Cintropur Filters_ES.pdf | ES | Technical Sheet |
| Technical Sheets Cintropur Filters_FR.pdf | FR | Technical Sheet |
| Technical Sheets Cintropur Filters_NL.pdf | NL | Technical Sheet |
