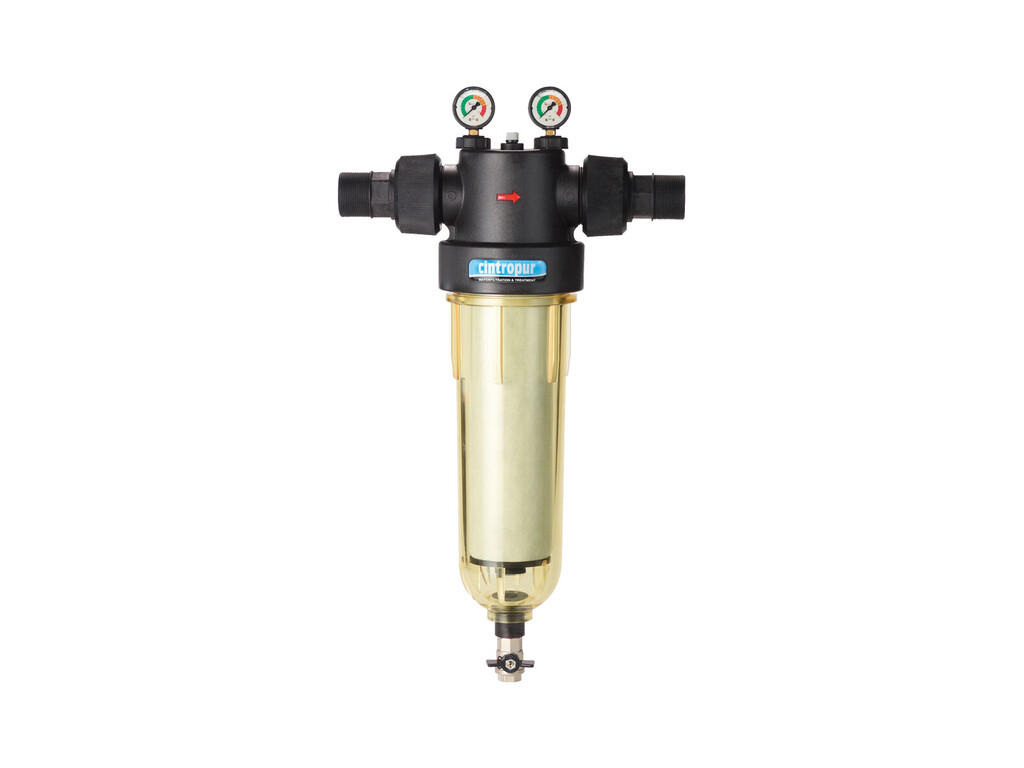

Cintropur filter NW 500
Item No. AX03:
1602010001
Item No. D365:
13351000049
Description
Features
| Connections | 2" |
| Good to know | NW 500: standard delivered with detachable connections – NW 650 & NW 800 : standard delivered with 2 pre-assembled loose flanges |

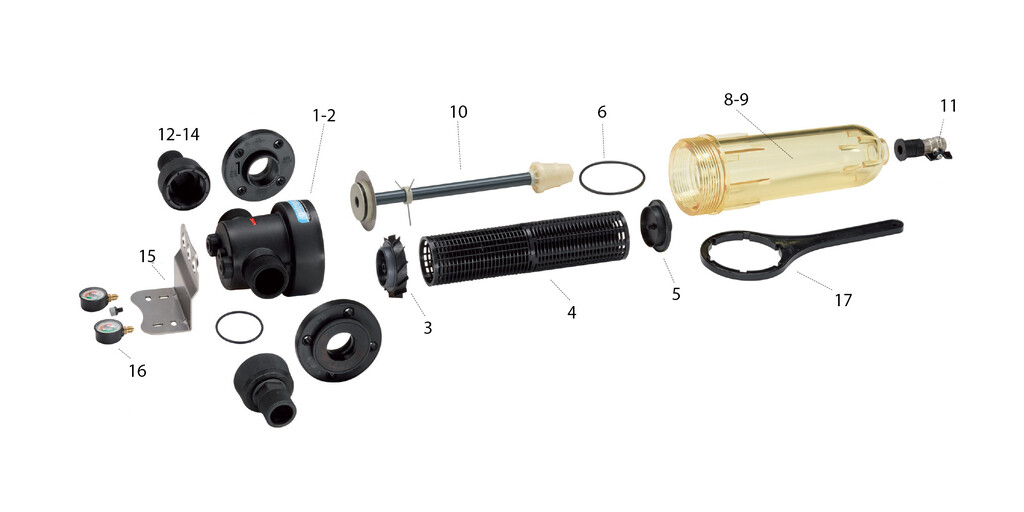

| Exploded view number | Image | Reference | Product | Quantity |
|---|---|---|---|---|
| 01 |
|
1802030001 | Filter head NW 500-650 | |
| 02 |
|
1802030002 | Filter head NW 800 | |
| 03 |
|
1802030003 | Centrifugal screw | |
| 04 |
|
1802030004 | PVC support for sleeves | |
| 05 |
|
1802030005 | PVC cover for filter support | |
| 06 |
|
1802030006 | O-ring for NW 500-650-800 | |
| 07 |
|
1802005791 | Air screw with O-ring | |
| 08 |
|
1802030007 | Transparant bowl | |
| 09 |
|
1802030009 | Black bowl | |
| 10 |
|
1802030010 | Riser tube | |
| 11 |
|
1802030012 | Tap 3/4″ | |
| 12 |
|
1802030015 | Connection NW 500 | |
| 13 |
|
1802030016 | Flange NW 650 | |
| 14 |
|
1802030017 | Flange NW 800 | |
| 15 |
|
1802030018 | Wall bracket NW 500-650-800 | |
| 16 |
|
1802030013 | Manometer 1/4″ 0-20 bar | |
| 17 |
|
1802030014 | Spanner |
| Image | Reference | Product | Type |
|---|---|---|---|
|
|
1802030018 | Wall bracket NW 500-650-800 | Accessorie |
|
|
1802005775 | Manometer 1/8″ 0-10 bar | Accessorie |
|
|
1802030014 | Spanner | Accessorie |
No related items available
| Document | Language | Type |
|---|---|---|
| Technical Sheets Cintropur Filters_DE.pdf | DE | Technical Sheet |
| Technical Sheets Cintropur Filters_EN.pdf | EN | Technical Sheet |
| Technical Sheets Cintropur Filters_ES.pdf | ES | Technical Sheet |
| Technical Sheets Cintropur Filters_FR.pdf | FR | Technical Sheet |
| Technical Sheets Cintropur Filters_NL.pdf | NL | Technical Sheet |
