Clack WS1.5EI – Vol – Down Flow
Item No. AX03:
5302038182
Item No. D365:
Description

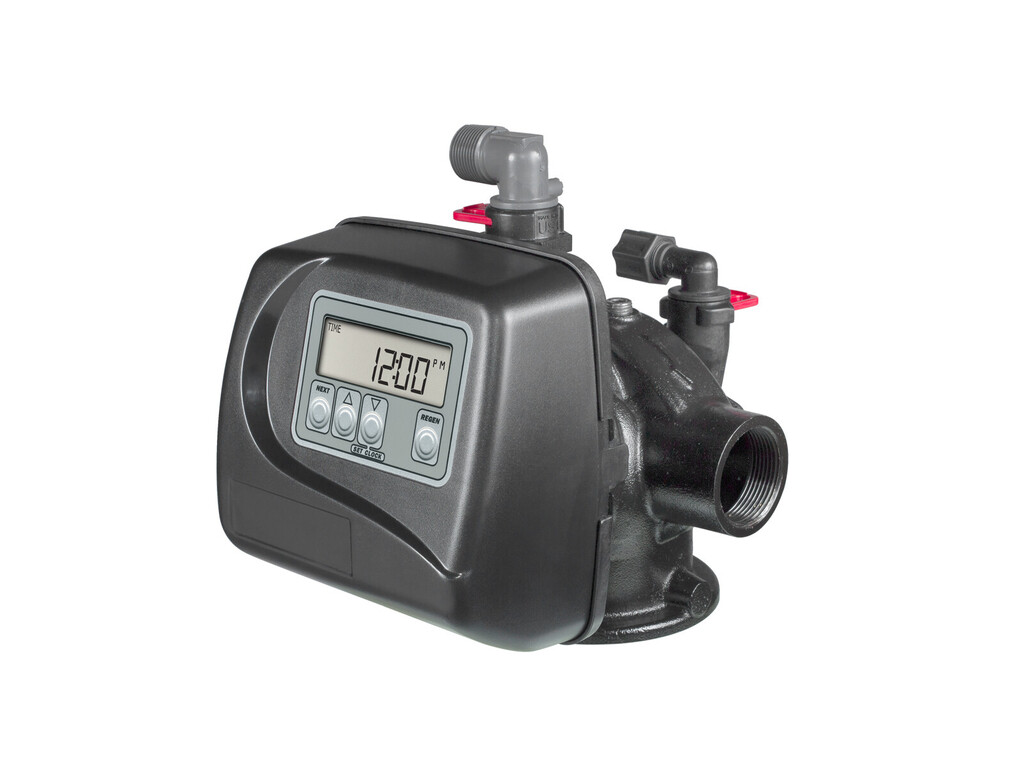

The commercial/industrial line of control valves was developed with direct input from customers and incorporates many of the proven features from the residential line of valves. Our WS1.5 valve provides flow rates up to 15.9 m³/hr.
The WS1.5 Clack valves incorporate the patented “stack technology” and feature the same electronics and programming software as the residential line of valves.
Features
- 1.5″ top mount control valve suited for mid-size commercial/industrial applications
- Epoxy coated lead free brass valve body
- Economical optional meter
- Service flow rate of 265 lpm (15.9 m³/h) (70 gpm), backwash 197 lpm (11.8 m³/h) (52 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Time clock delayed, meter delayed, meter immediate or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with a 8 hour carry over
- 12-volt output AC Adapter provides safe and easy installation
- Post treated water regenerant refill
- 24 hour clock
- Patented one piece expanding seal spacer stack assembly U.S. Patent 6,402,944
- Patented linearly reciprocating piston operation U.S. Patent 6,444,127
- Reliable and proven DC drive
| Operating Pressure | 1.4 - 8.6 bar |
| Controller | EI |
| Application | Softener |
| Regeneration | Downflow |
| Control Type | Meter |
| Valve Material | Lead Free Brass |
| Mixing Valve | No |
| Injector | G - Yellow |
| Cycles | Up to 6 |
No exploded view available
| Document | Language | Type |
|---|---|---|
| Leaflet Clack WS1.5EI_EN.pdf | English (EN) | Leaflet |
| Leaflet Clack WS1.5EI_NL.pdf | Dutch (NL) | Leaflet |
| Leaflet Clack WS1.5EI_FR.pdf | French (FR) | Leaflet |
| Leaflet Clack WS1.5EI_DE.pdf | German (DE) | Leaflet |
| V3435_WS1.5 – WS2 – WS2QC Drawings and Service Manual_EN.pdf | English (EN) | Service Instructions |
| V3435_WS1.5 – WS2 – WS2QC Drawings and Service Manual_NL.pdf | Dutch (NL) | Service Instructions |
| V3435_WS1.5 – WS2 – WS2QC Drawings and Service Manual_FR.pdf | French (FR) | Service Instructions |
| V3435_WS1.5 – WS2 – WS2QC Drawings and Service Manual_DE.pdf | German (DE) | Service Instructions |
| V3435_WS1.5 – WS2 – WS2QC Drawings and Service Manual_ES.pdf | Spanish (ES) | Service Instructions |
| V3435_WS1.5 – WS2 – WS2QC Drawings and Service Manual_IT.pdf | Italian (IT) | Service Instructions |
| V3435EI_EI Programming Manual_EN.pdf | English (EN) | Service Instructions |
| V3435EI_EI Programming Manual_NL.pdf | Dutch (NL) | Service Instructions |
| V3435EI_EI Programming Manual_FR.pdf | French (FR) | Service Instructions |
| V3435EI_EI Programming Manual_DE.pdf | German (DE) | Service Instructions |
| V3435EI_EI Programming Manual_IT.pdf | Italian (IT) | Service Instructions |
