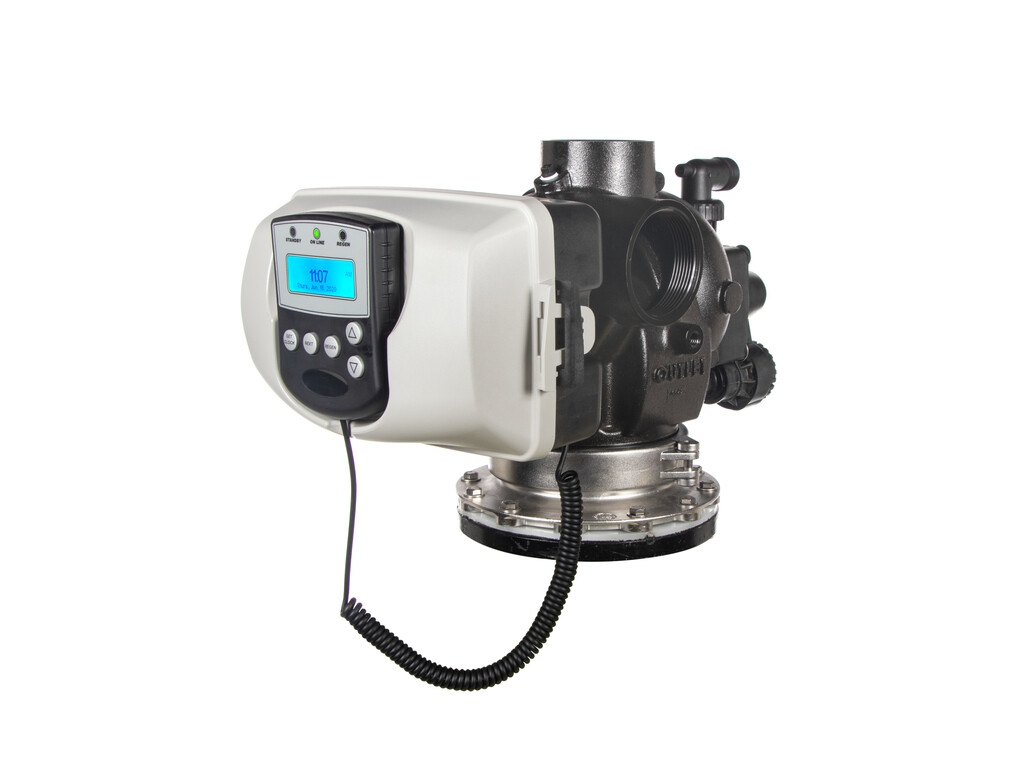

Clack WS3 Filter – Time
Item No. AX03:
5302031842
Item No. D365:
10340000127
Description
The WS3 valve is part of our commercial/industrial line of valves.
It features the same “stack technology” as the other control valves, but they has its own controller that is more suited to industrial applications.
Our WS3 valve provides flow rates up to 56.8 m³/h.
The software of the WS3 valve received an update in 2020. The latest version has a new graphics display, features multiple languages and offers Modbus RS485 capabilities.
Features
- Filter: High backwash flowrate
- Master/Slave operation: can be used to interlink up to
- Programmable as simplex, alternating, progressive or parallel flow
- Programmable in 5 EU languages: English, French, German, Spanish, Italian
- Modbus RS485
| Operating Pressure | 1.4 - 8.6 bar |
| Controller | WS3 |
| Application | Filter |
| Regeneration | Backwash |
| Control Type | Time Clock |
| Valve Material | Lead Free Brass |
| Mixing Valve | No |
| Injector | Z - Grey Plug |
| Cycles | Up to 9 |
No exploded view available
| Document | Language | Type |
|---|---|---|
| Leaflet Clack WS3_EN.pdf | English (EN) | Leaflet |
| Leaflet Clack WS3_NL.pdf | Dutch (NL) | Leaflet |
| Leaflet Clack WS3_FR.pdf | French (FR) | Leaflet |
| Leaflet Clack WS3_DE.pdf | German (DE) | Leaflet |
| 3266_WS2H – WS2HF – WS3 Troubleshooting Guide_EN.pdf | English (EN) | Service Instructions |
| V3215_31_WS2H – WS2HF – WS3 Drawings and Service Manual_EN.pdf | English (EN) | Service Instructions |
| V3215_31_WS2H – WS2HF – WS3 Drawings and Service Manual_NL.pdf | Dutch (NL) | Service Instructions |
| V3215_31_WS2H – WS2HF – WS3 Drawings and Service Manual_FR.pdf | French (FR) | Service Instructions |
| V3215_31_WS2H – WS2HF – WS3 Drawings and Service Manual_DE.pdf | German (DE) | Service Instructions |
| V3215_31_WS2H – WS2HF – WS3 Drawings and Service Manual_ES.pdf | Spanish (ES) | Service Instructions |
| V3215_31_WS2H – WS2HF – WS3 Drawings and Service Manual_IT.pdf | Italian (IT) | Service Instructions |
