EP 300
Item No. AX03:
5110030666
Item No. D365:
Description

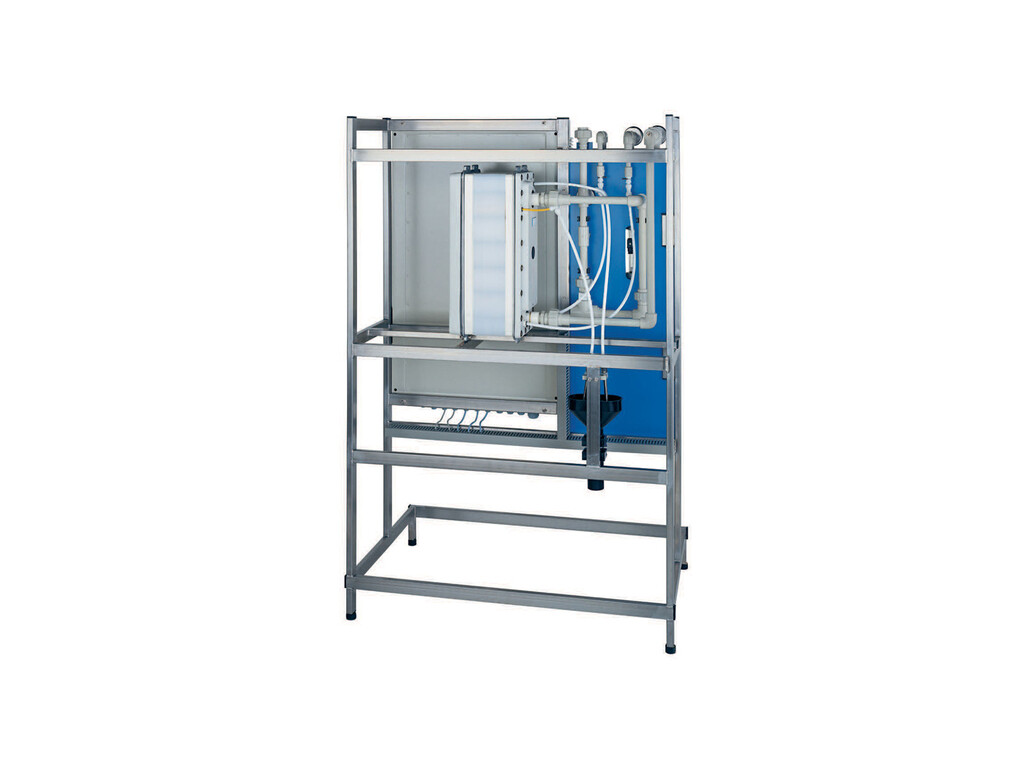

Vertical frame system for polishing of reverse osmosis permeate, operating on the principle of electro-deionization
Features
- Complete unit skid mounted
- For the demineralisation of RO permeate
- Uses the electro-deionization technology
- Recovery: 90%
- Resistivity of EP water (with free CO2): 5MΩxcm
- Resistivity of EP water (without free CO2): > 10 MΩxcm
- Design pressure: 1 to 2.5 bar (depending on type)
- Voltage: 230 V/50 Hz (150) / 3 x 400 V/50 Hz (300 – 2200)
- Analogue flow meters
| Width | 1040 mm |
| Height | 1610 mm |
| Depth | 690 mm |
| Weight | 95 kg |
| Flow Rate | 100 - 300 l/h |
| Recovery | 90 % |
| Max Operating Pressure | 1.5 bar |
| Feedwater Connection | DN20 |
| Voltage | 3 x 400V / 50Hz |
| Feedwater Pressure | max. 4 bar |
| Feedwater Temperature | min./max. 5/35 °c |
| Ambient Temperature | Max. 40°c |
| pH Range | 5 - 9.5 |
| Waste Water Connection | HT 50 |
| Diluate Flow | 300 l/h |
| Product Water Connection | DN20 |
| Resistivity EDI Product (With CO2) | 5 MΩ x cm |
| Resistivity EDI Product (Without CO2) | > 10 MΩ x cm |
| Power Consumption | 2.1 kW |
| Good to know | For the production of ultrapure water with resistance >10MΩxcm |
No exploded view available
| Image | Reference | Product | Type |
|---|---|---|---|
|
5213000421 | Upgrade kit standalone-operation EP-Units | Option |
