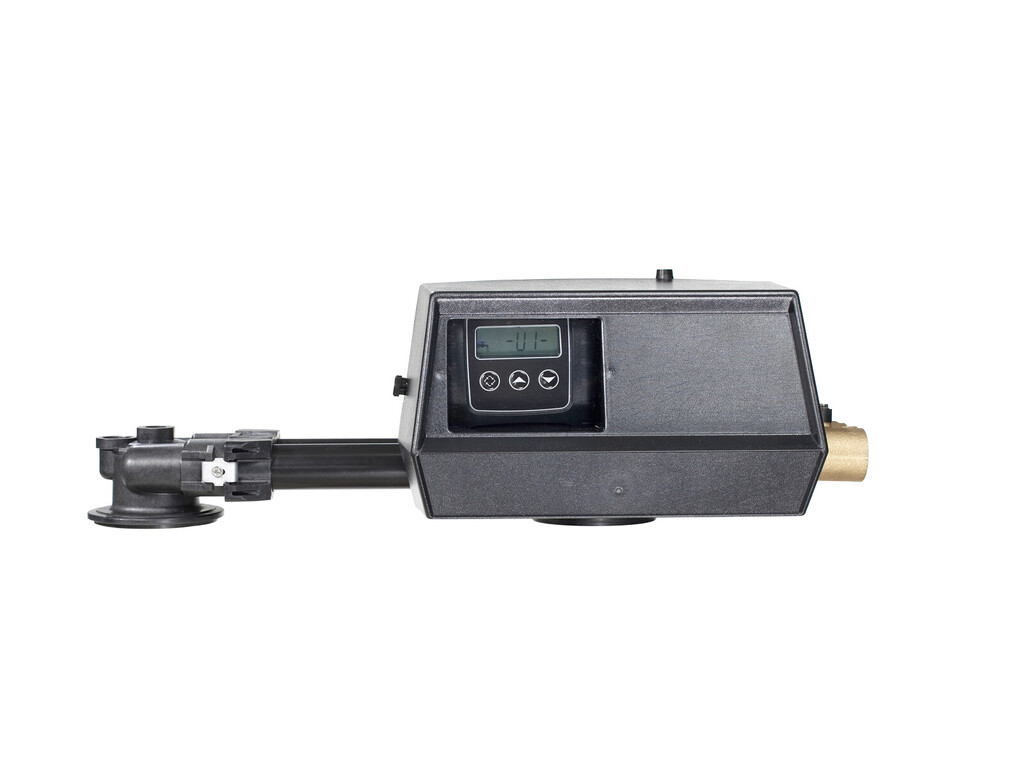

Fleck 9100/1600 SXT Twin | Duplex SXT Eco 3/4″ + Mixing | 1/1.5/0.25
Item No. AX03:
0301910104SXT-M02
Item No. D365:
10344000007 : C00003
Description
9100 is a fiber-reinforced noryl valve for superior strength and durability. It is non-corrosive and UV-resistant, providing a continuous service flow rate of 5.4 m³/h with a backwash of 2.3 m³/h. The 9100 regenerates immediately when needed for continuous soft water, keeping system clean for optimum operating efficiency and minimum maintenance.
Features
- Regenerates with soft water
- Innovative second tank quick connection
- Use of 100% of tank capacity before switching to the second tank
- Corrosion-free fiber-reinforced polymer valve body
| Operating Pressure | 1.8 - 8.5 bar |
| Operating Temperature | 1 - 43 °c |
| Controller | SXT |
| Application | Softener |
| Control Type | Meter |
| Valve Material | Noryl |
| For Hot Water | No |
| In / Outlet | 3/4" |
| Service Flow | 4 m³/h |
| Backwash Flow Rate | 1.9 m³/h |
