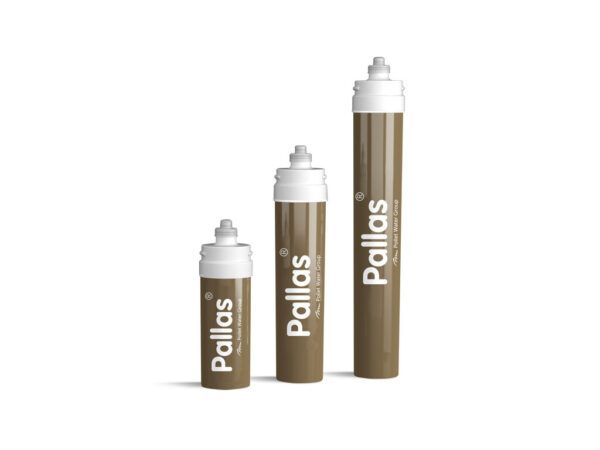

Pallas cartridge GOLD with carbon block (Exclusive) – Medium
Item No. AX03:
1762010003PWG-MEDIUM
Item No. D365:
13670000023
Description
Ultrafiltration for drinking water
Pallas filter cartridge Gold is the certainty for drinking water. 0.1 μm filtration and Carbon Block Pallas cartridges technology added with silver ions combined with an ultrafiltration stage that prevents the passage of 99.9999% of bacteria.
Features
- Removes odours and off-tastes
- Reduces chlorine
- Prevents passage of 99.9999% of bacteria
- Reduces the organic macromolecules presence
| Height | 385 mm |
| Diameter | 87.4 mm |
| Flow Rate | 5 l/min |
| Capacity | 10.000 l |
| Remarks | Capacities may vary based on incoming water and flow rates |
| How does it work? | Ultrafiltration of drinking water |
| Maintenance | When installing and replacing the filter, consider the space required to remove the cartridge. |
No exploded view available
| Image | Reference | Product | Type |
|---|---|---|---|
|
|
1662010007 | Head serial flow with wall bracket 1/4″ (Exclusive) | Accessorie |
|
|
1662010004 | Head serial flow with wall bracket 3/8″ (Exclusive) | Accessorie |
|
|
1662010010 | Head serial flow with wall bracket 8mm (Exclusive) | Accessorie |
|
|
1662010001 | Head serial flow with wall bracket 10mm (Exclusive) | Accessorie |
|
|
1662010008 | Head single side flow with wall bracket 1/4″ (Exclusive) | Accessorie |
|
|
1662010005 | Head single side flow with wall bracket 3/8″ (Exclusive) | Accessorie |
|
|
1662010011 | Head single side flow with wall bracket 8mm (Exclusive) | Accessorie |
|
|
1662010002 | Head single side flow with wall bracket 10mm (Exclusive) | Accessorie |
|
|
1662010009 | Head in parallel flow with wall bracket 1/4″ (Exclusive) | Accessorie |
|
|
1662010006 | Head in parallel flow with wall bracket 3/8″ (Exclusive) | Accessorie |
|
|
1662010012 | Head in parallel flow with wall bracket 8mm (Exclusive) | Accessorie |
|
|
1662010003 | Head in parallel flow with wall bracket 10mm (Exclusive) | Accessorie |
No related items available
| Document | Language | Type |
|---|---|---|
| Brochure B2C Pallas Cartridges – GOLD.pdf | EN | Brochure |
| TS Pallas Cartridge GOLD_EN.pdf | EN | Technical Sheet |
| TS Pallas Cartridge GOLD_FR.pdf | FR | Technical Sheet |
| TS Pallas Cartridge GOLD_DE.pdf | DE | Technical Sheet |
