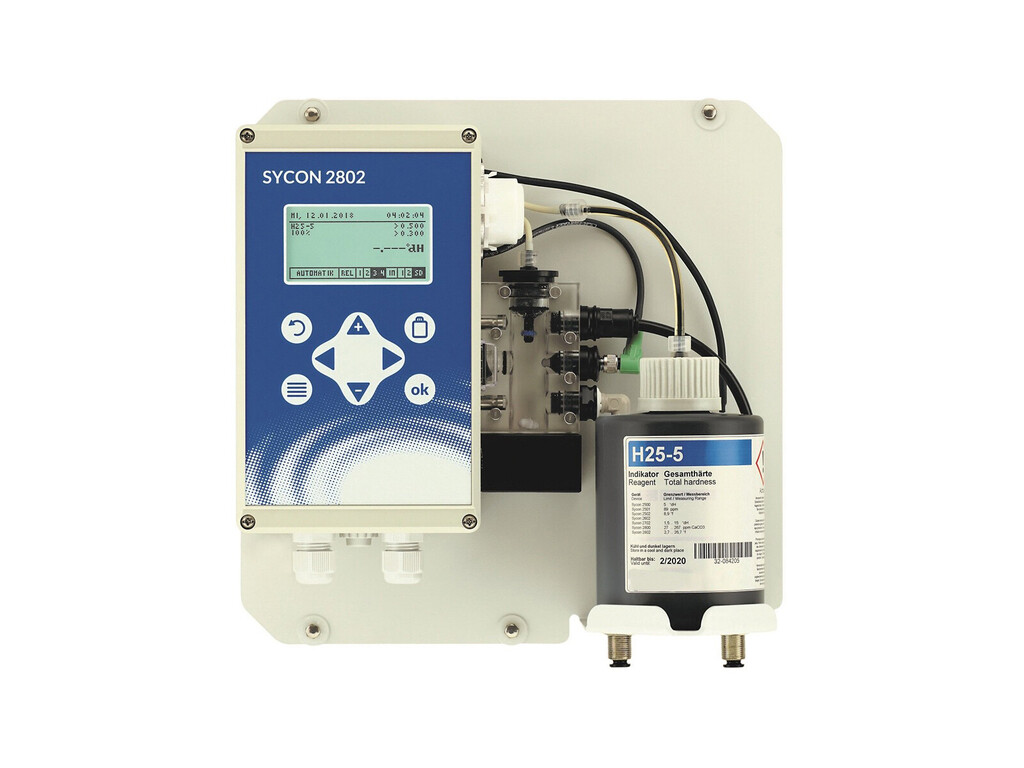

Sycon 2802

Sycon 2802

Item No. AX03:

4802020007

Item No. D365:

11778000009

Description

In the past years, our softener range benefitted from the advancement of the valve manufacturers including meter demand control, down to up flow proportional regeneration to save water and salt. These evolutions have caused a breakthrough in delivering high efficient softeners, but also led to softeners being more sensitive to the changes influencing the hardness capacity and/or regeneration efficiency.

To monitor water hardness and prevent hardness leakage, we are launching a new competitive range of online analysers. Consider the Sycon as the guardian angels of your water softeners.

Features

Measurement Range Carbonate Hardness

0,11 - 8,04 mmol/l
0,3 - 22,5 °dH
0,5 - 40,2 °F
5,4 - 401,8 ppm CaCO3

Measurement Range Total Hardness

0,012 - 30 °dH
0,021 - 53,6 °f
0,214 - 534 ppm CaCO3
0,0021 - 535,7 mmol/l

Admissible Water Pressure

0,5 - 5 bar

Advantages
  • Full automatic operation
  • Simple commissioning
  • Intuitive operation
  • Low maintenance
  • Self-calibrating
  • Diagnosis programme
  • Time controlled analysis interval
  • Volume controlled analysis interval (Sycon 2802)
  • Measured value graph of the last 100 analyses (Sycon 2800)
  • Measured value protocol on SD-card (Sycon 2802)
  • CAN port (Sycon 2802)
  • Analogue output (4 to 20mA) (Sycon 2802)

Relay function:

    • Limit value 1
    • Limit value 2 (Sycon 2802)
    • Analysis active/cool water
    • Ready for operation
    • Operation without supervision warning

Input function:

    • Current monitor
    • External analysis start
    • Analysis abort (Sycon 2802)
    • Water counter (Sycon 2802)
How does it work?

Sycon devices apply by a colourimetric test method. Following the introduction of a reagent inside water sample, a colour reaction occurs. Depending on the method, the unit either evaluates the colour intensity or ascertains the value at which the colour changes.

Maintenance

The Sycon units have a guarantee warranty of 24 months. In case of malfunction or maintenance, your product can be shipped back to the manufacturer to be inspected. If necessary, we will replace defective parts or upgrade electronics.

Certifications

The manufacturing facility is certified ISO 9001 : 2008 by TÜV Nord.

Both models are compliant with low voltage directive (2014/35/EU) and EMC directive (EN 6100 3-2/3-3/61326-1).

No exploded view available

Image Reference Product Type
4802030001 Maintenance kit for Sycon 2802 Service kit
4802030029 Pressure reducer / throttle Accessorie
4802030018 Reagent H25 – 0,02 °dH (500 ml) Reagents
4802030019 Reagent H25 – 0,05 °dH (500 ml) Reagents
4802030020 Reagent H25 – 0,1 °dH (500 ml) Reagents
4802030021 Reagent H25 – 0,2 °dH (500 ml) Reagents
4802030022 Reagent H25 – 0,3 °dH (500 ml) Reagents
4802030023 Reagent H25 – 0,5 °dH (500 ml) Reagents
4802030024 Reagent H25 – 1 °dH (500 ml) Reagents
4802030025 Reagent H25 – 2 °dH (500 ml) Reagents
4802030026 Reagent H25 – 3 °dH (500 ml) Reagents
4802030027 Reagent H25 – 5 °dH (500 ml) Reagents
4802030028 Reagent H25 – 10 °dH (500 ml) Reagents
