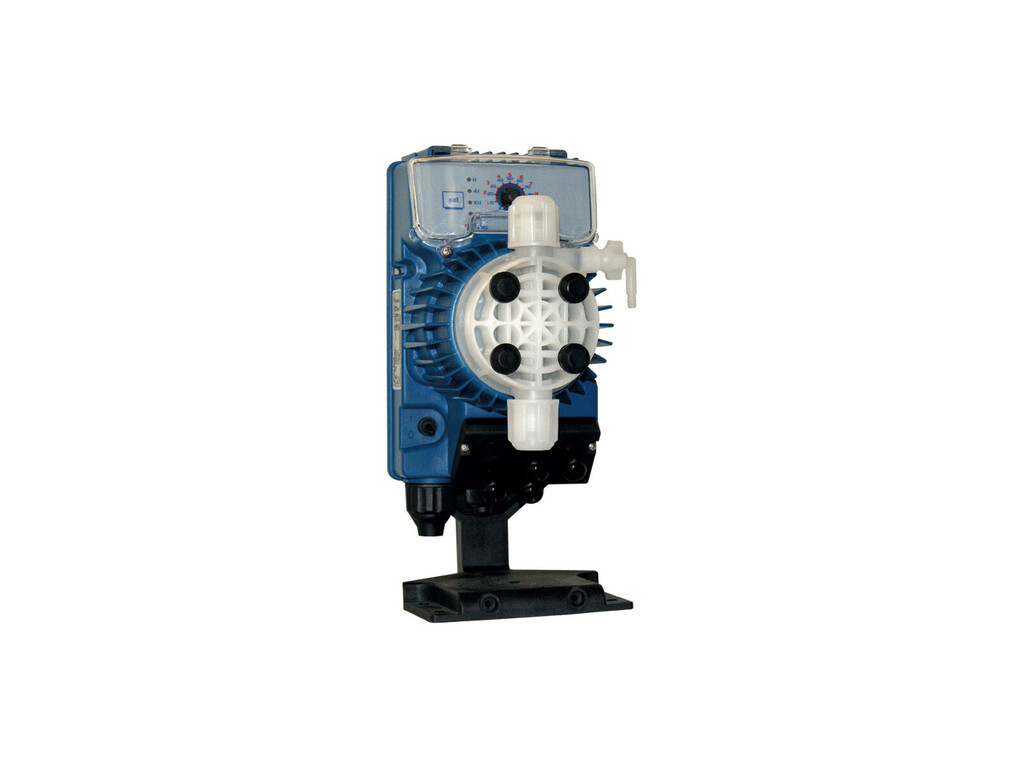

Tekna APG 600 FPM
Item No. AX03:
2301016618
Item No. D365:
11463000008
Description
Analogue dosing pump with constant flow (manually adjustable) or proportional flow in function of an analogue signal (4-20mA) or an impulse (impulse water meter)
Features
- IP 65 protection degree and class 2 electrical insulation
- Extra-strong and long life Santoprene and SekoBril squeeze tubing
- Easy wall mounting and removing thanks to the fixing brackets
- Easy tubing replacement
- Pump head of polypropylene with PTFE membrane and bearing – suitable for acid dosing
| Width | 119 mm |
| Height | 231 mm |
| Length | 145 mm |
| Connections | 4x6 mm suc. |
| Flow Rate | 2.5 l/h |
| Operating Pressure | 20 bar |
| Dosing | 2,5 l/h - 20 bar - 0,35 cc/stroke |
No exploded view available
No documentation available
