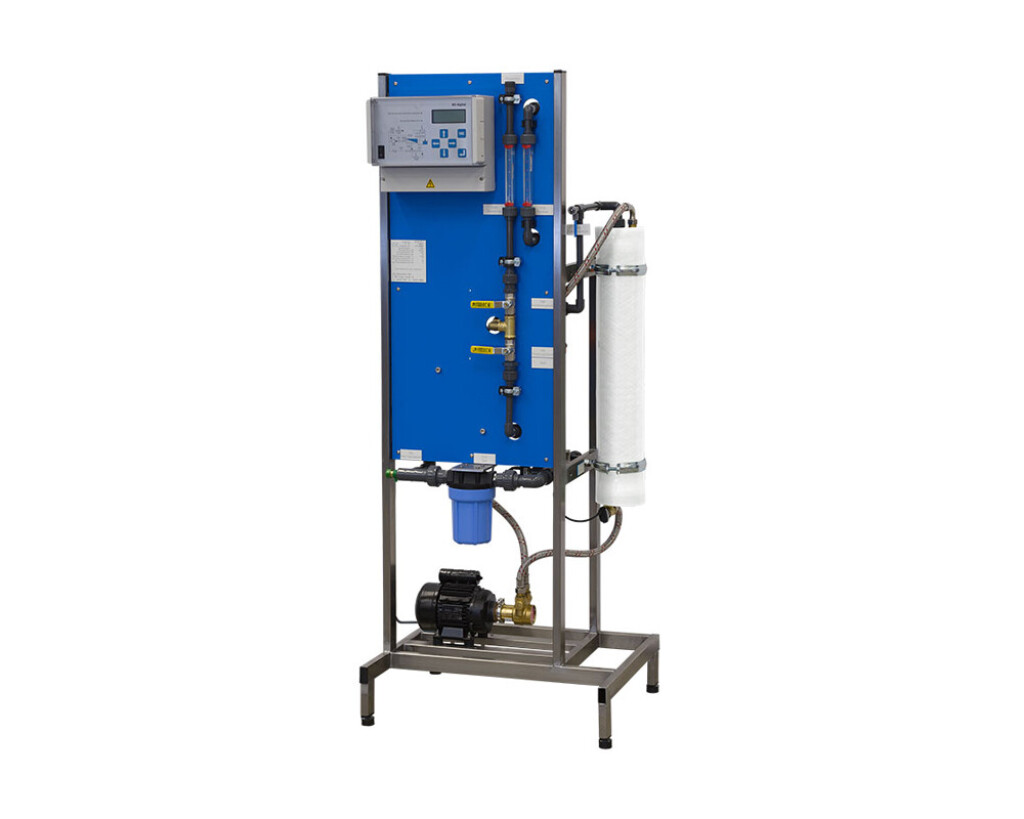

UO-ED 50 Z CD
Item No. AX03:
5110010246
Item No. D365:
Description
The ready-to-connect Combi counter pressure reverse osmosis unit including pre-treatment enables hygienic operation by feeding the permeate directly to the end user, no intermediate storage tank is required.
The UO-ED Z CD series is specially designed to produce water for air-conditioning systems (AC) and can supply several floors directly
Features
- Pre-treatment pre-mounted on frame: Pre-filter, backflow preventer, duplex softener (CD) and hardness monitoring unit.
- Easiest installation on-site with only 4 connections: drinking water, permeate, waste water and socket.
- Design with minimal dead zones and fully flow-through diaphragm pressure vessel reduces the risk of germ growth.
- Generated permeate is delivered directly to the consumers without an intermediate storage tank.
| Width | 1700 mm |
| Height | 1560 mm |
| Depth | 800 mm |
| Weight | 155 kg |
| Conductivity Range | 1 - 999 µS/cm |
| Membranes | 2540 x 1 |
| Recovery | 75-80 % |
| Feedwater Connection | 1" IG |
| Permeate/Concentrate Connection | DN10/HT 100 |
| Voltage | 230V / 50Hz |
| Motor Power | 0.25 kW |
| Minimal Salt Rejection | 97 % |
| Pre-fusing | 16 A |
| Feedwater Pressure | min./max. 2/4 bar |
| Feedwater Temperature | min./max. 5/35 °c |
| Ambient Temperature | Max. 40°c |
| pH Range | 6,5 - 9,5 |
| Permeate Flow | 50 l/h (4 bar) |
No commercial information available.
No exploded view available
| Image | Reference | Product | Type |
|---|---|---|---|
|
4804000640 | Limitron 3/4″ | Option |
|
|
5213000286 | HR Modules UO-ED Z | Option |
