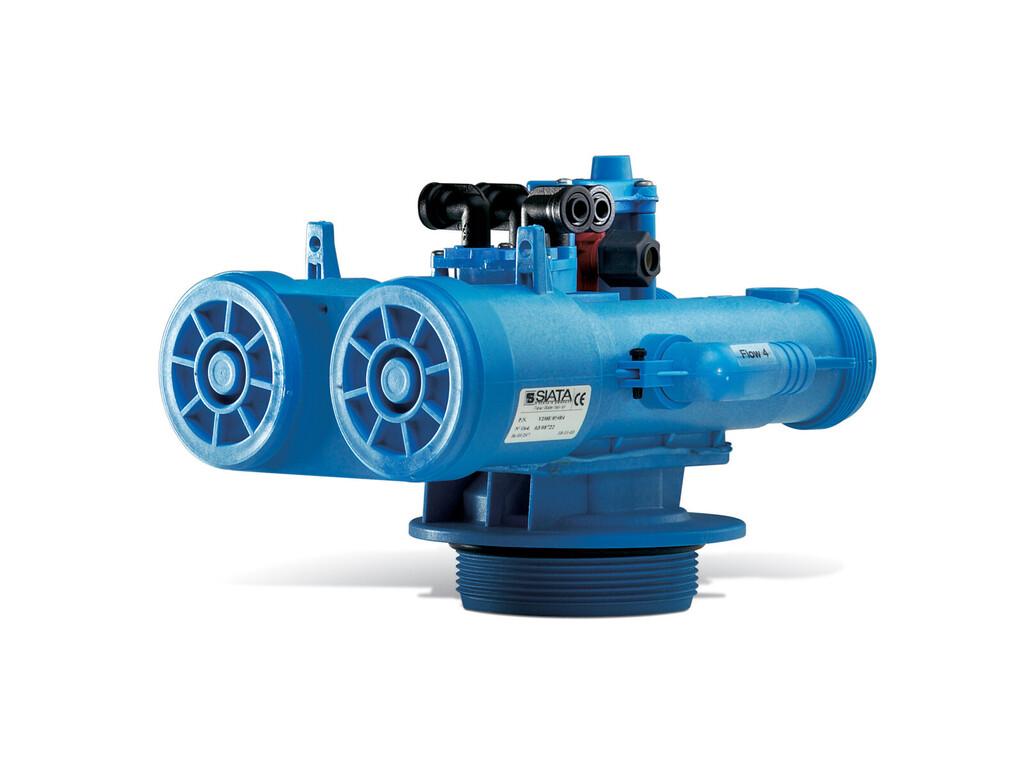

V230 Duplex Valve Body Assy – Injector G Flow 5
Item No. AX03:
0302130009V230E#G5
Item No. D365:
Description
V230 is a commercial valve with the flow rate up to 8.5 m³/h. It’s union connections allow an easy installation and maintenance. The valve is suitable for simplex, duplex or multiplex softening systems, as well as for filtration, demineralization, dealkalisation or iron & manganese removal applications and is compatible with the entire SIATA controller range.
Features
- Valve body in ABS material
- Control pressure replicator
- Internal turbine option
- Flow rate is up to 8.5 m³/h
- Compatible with the entire SIATA controller range
| Colours | Black |
| Operating Pressure | 1.5 - 6 bar |
| Operating Temperature | 5 - 40 °c |
| Regeneration | Downflow |
| Valve Material | Glassfiber reinforced ABS |
| Valve Mounting | Top Mounting |
| In / Outlet | 2" |
| Service Flow | 8.5 m³/h |
| Backwash Flow Rate | 4 m³/h |
| Remarks | Tank size depends on the use (filter or softener) |
