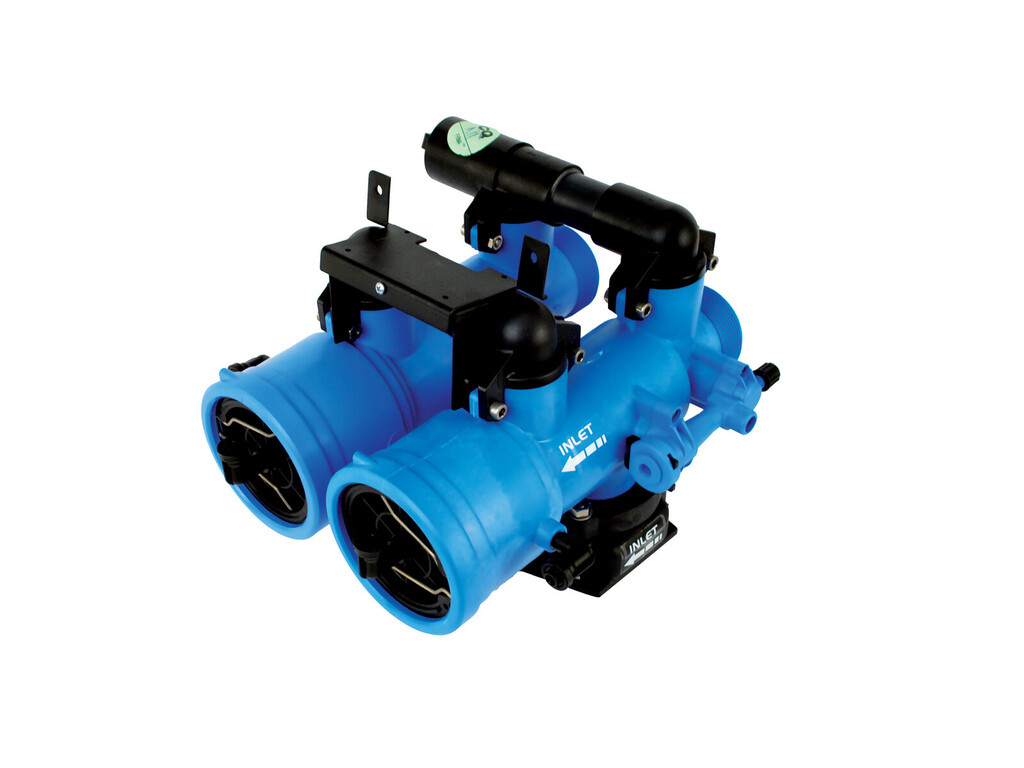

V250 Softener Valve (No Service Bypass) – Blue Injector
Item No. AX03:
0302250001
Item No. D365:
Description
V250 is a top mounted valve, with the flow rate up to 21 m³/h. It is suitable for residential and commercial softening, demineralisation, dealkalisation applications, as well as filtration systems and is compatible with most of the SIATA controller range. Two valve versions are available: with or without a bypass to service in regeneration or during high flow service.
Features
- Valve body in ABS material
- Flow rate is up to 21 m³/h
- 2 versions available: with or without bypass
- Compatible with the majority of SIATA controller range
| Colours | Blue |
| Operating Pressure | 1.5 - 6 bar |
| Operating Temperature | 5 - 40 °c |
| Application | Softener |
| Regeneration | Downflow |
| Valve Material | Glassfiber reinforced ABS |
| Valve Mounting | Top Mounting |
| Injector | Blue Injector |
| In / Outlet | 2" 1/4 |
| Service Flow | 21 m³/h |
| Backwash Flow Rate | 12 m³/h |
| Remarks | Tank size depends on the use (filter or softener) |
No commercial information available.
No exploded view available
No accessories available
No related items available
No documentation available
